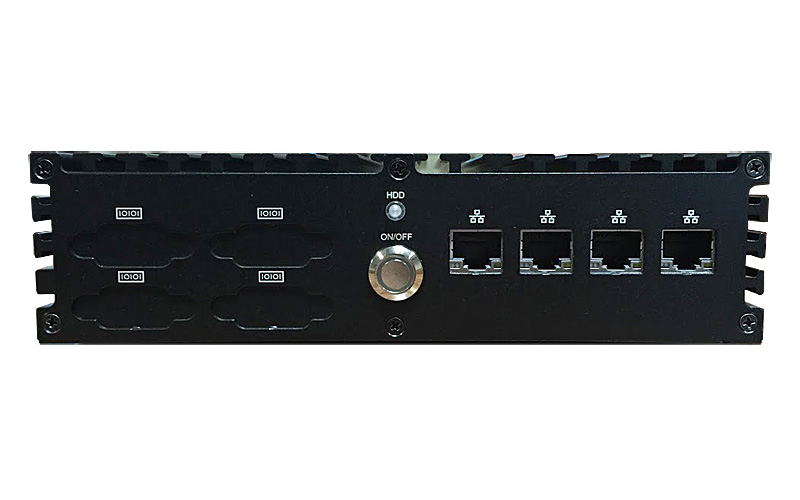

JBC390F541XA-1900-B Intel Baytrail Celeron J1900 Quad Core Processor, the JBC390 networking Mini PC features 6 Intel Gigabit LAN ports all in a compact and fan-less industrial enclosure. The JBC390 is designed as a versatile networking appliance for a variety of applications. 2GB of System memory and a 64GB Solid State Drive are included for convenient, out-of-box operation. Operating System software is not installed nor included.
.

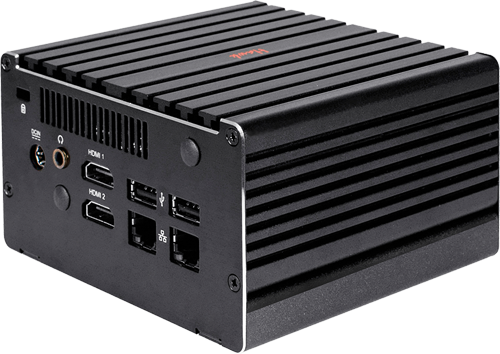

JBC320U93(W)-2930-B INTEL® Bay Trail SOC chipset Onboard INTEL® Bay Trail N2930 1.83GHz Quad Core 7.5W processor Support DirectX 11 3D Graphics Acceleration Support DDR3L 1333 Integrated HD Audio CODEC Support 2* INTEL® Gigabit LAN (WG82574L) Support 2*HDMI Ports / 1*COM Ports Support 1*USB3.0 Port Support Power Onboard(9~24V) Support 1*SATA2.0 NUC Form Factor (101mm X101mm)
JBC365F3A-2930-B
INTEL® 4th Generation Core i7 / i5 / i3 / Pentium Processor < 45W
Socket LGA 1150 (Formerly Haswell) - Embedded Long-life Series, Planned Lifecycle Through Q4'2018 - Nuvoton TPM IC Onboard - Support up to 3 Displays, HDMI, DVI-D, VGA - Supports iAMT 9.0 Function - ECO-design for EuP/ErP

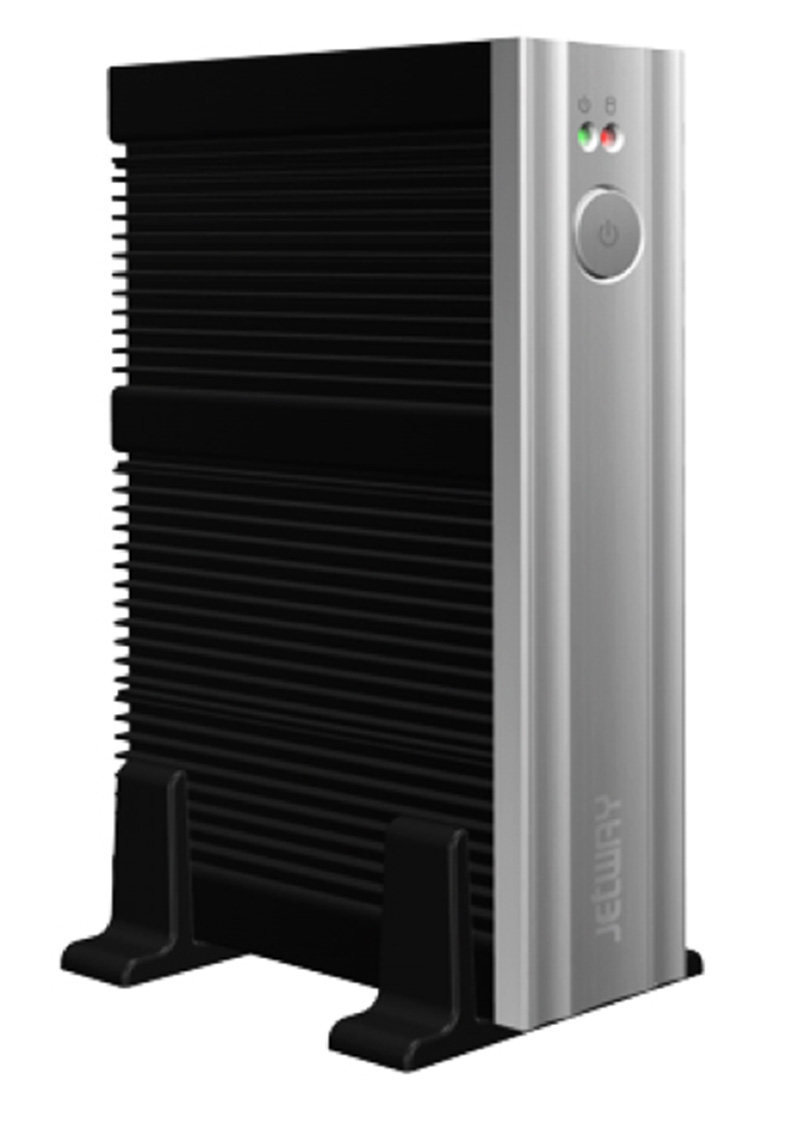

JBC365F3A-2930-B
INTEL® Bay Trail-M N2930 SoC Processor 1 * SO-DIMM solt (Max 4GB) 2 * Mini PCIE slot 2 * RTL8111G PCI-E Gigabit LAN Realtek ALC662 HD Audio CODEC with 2-Channel Support 1 * 2.5" SATA Device (Max Height 9.5 mm) Support 1 * m-SATA SSD Device (Mini PCI-E) 1 * USB 3.0 port 3 * USB 2.0/1.1 ports 2 * RJ-45 ports(Gigabit LAN)

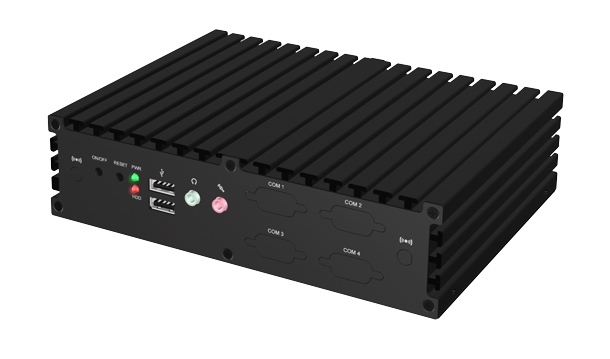

JBC375F3A-2930-B
INTEL® Bay Trail-M N2930 SoC Processor 1 * SO-DIMM solt (Max 4GB) 2 * Mini PCIE slot 2 * RTL8111G PCI-E Gigabit LAN Realtek ALC662 HD Audio CODEC with 2-Channel Support 1 * 2.5" SATA Device (Max Height 9.5 mm) Support 1 * m-SATA SSD Device (Mini PCI-E) 1 * USB3.0 ports 2 * USB2.0 ports 1* LCD VESA Mount Bracket (Optional)
HBJC310U91-Series
It is for full outdoor use, can work in any harsh environment. Its protection grade reaches IP65, waterproof and dustproof. Built-in Air Conditioner for cooling and heating, this kind of LCD Display can keep normal operation in the environment of -40 to +55 ℃. iBt owns LED backlight technology. By adopting LED backlight, the brightness of each screen is up to 1500 cd/㎡, which ensures LCD readability under direct sunlight. Touch screen is also an option for this model.

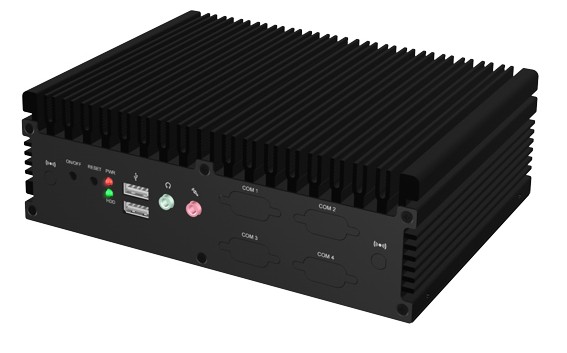

JBC381F39-1047-B
INTEL® Celeron-M Processor 1047UE + HM65 Chipset Support 1 * DDR3 1066/1333MHz Single CH up to 8GB Support 1 * Serial ATAIII (6Gb/s) Devices Support CFast card Support mSATA card (Share with Mini PCI-E) Support Mini PCI-E x 1 1 * 24 bits Dual Channel LVDS header Support DVI-I Output Supports 2 * Realtek RTL8111F-CG Gigabit LAN Support CPU Smart FAN
JBC200F96-525-B / JBC200F96-52W-B
INTEL® Atom Processor D525 + ICH8M Chipset Support 2 * Serial ATA2 3Gb/s connectors Support 2 * DDRII 800/667MHz Single CH up to 4GB Supports Realtek RTL8111DL PCI-E Gigabit Ethernet LAN Realtek ALC662 6-CH HD Audio CODEC Support Jetway PCI Daughter card Support Watch dog Technology Support CPU Smart FAN Wi-Fi wireless card support (JBC200F96-52W-B only) Small size Easy to use

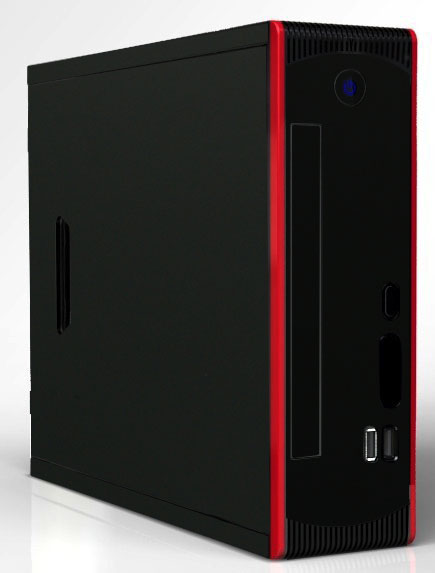

JBC231C9R-1037-BB / JBC231C9R-103W-BB
INTEL® Celeron 1037U Processor + NM70 Chipset Support 2 * DDR3 1066/1333MHz Single CH up to 16GB Support DirectX 9 Graphics Support 3 * Serial ATAII (3Gb/s) & 1 * Serial ATAIII (6Gb/s) Devices Integrated Realtek ALC662 HD Audio CODEC with 6-CH Supports 1 * Realtek RT8111F Gigabit LAN Support 2 * COM ports (COM1 for RS232/422/485) WI-FI wireless card support (JBC231C9R-103W-BB only) Support Slim ODD drive & 2.5"SATA HDD drive bay Energy Efficiency Pioneer Small size, Easy to use
